ラティス諸元表 |
 |
型式
(ton) |
標準型 |
型式
(ton) |
突 型 |
コンクリート
体積(ｍ3) |
型枠面積
(ｍ2) |
実質量
(ton) |
コンクリート
体積(ｍ3) |
型枠面積
(ｍ2) |
実質量
(ton) |
| 1 |
0.417 |
3.18 |
0.959 |
1 |
0.427 |
3.30 |
0.982 |
| 2 |
0.887 |
5.26 |
2.040 |
2 |
0.909 |
5.46 |
2.091 |
| 3 |
1.259 |
6.64 |
2.896 |
3 |
1.289 |
6.90 |
2.965 |
| 4 |
1.670 |
8.02 |
3.841 |
4 |
1.710 |
8.33 |
3.933 |
| 5 |
2.104 |
9.36 |
4.839 |
5 |
2.155 |
9.72 |
4.957 |
| 6 |
2.540 |
10.61 |
5.842 |
6 |
2.601 |
11.02 |
5.982 |
| 8 |
3.382 |
12.84 |
7.779 |
8 |
3.463 |
13.33 |
7.965 |
| 10 |
4.249 |
14.96 |
9.773 |
10 |
4.351 |
15.53 |
10.007 |
| 12 |
5.199 |
17.11 |
11.958 |
12 |
5.324 |
17.76 |
12.245 |
| 15 |
6.465 |
19.79 |
14.870 |
15 |
6.620 |
20.54 |
15.226 |
| 20 |
8.650 |
24.03 |
19.895 |
20 |
8.858 |
24.94 |
20.373 |
| 30 |
12.968 |
31.47 |
29.826 |
30 |
13.280 |
32.67 |
30.544 |
| 40 |
17.309 |
38.16 |
39.811 |
40 |
17.724 |
39.61 |
40.765 |
| 50 |
21.682 |
44.34 |
49.869 |
50 |
22.202 |
46.03 |
51.065 |
|
| 基本寸法 |
型式
(ton) |
L
(m) |
B
(m) |
H
(m) |
H'
(m) |
a
(m) |
b
(m) |
c
(m) |
d
(m) |
e
(m) |
f
(m) |
g
(m) |
h
(m) |
| 1 |
1.260 |
1.544 |
0.391 |
0.454 |
0.238 |
0.188 |
0.236 |
0.156 |
0.441 |
0.355 |
0.504 |
0.063 |
| 2 |
1.620 |
1.985 |
0.502 |
0.583 |
0.307 |
0.241 |
0.303 |
0.200 |
0.567 |
0.457 |
0.648 |
0.081 |
| 3 |
1.820 |
2.230 |
0.564 |
0.655 |
0.344 |
0.271 |
0.341 |
0.225 |
0.637 |
0.513 |
0.728 |
0.091 |
| 4 |
2.000 |
2.450 |
0.620 |
0.720 |
0.378 |
0.298 |
0.375 |
0.247 |
0.700 |
0.564 |
0.800 |
0.100 |
| 5 |
2.160 |
2.646 |
0.670 |
0.778 |
0.409 |
0.322 |
0.405 |
0.267 |
0.756 |
0.609 |
0.864 |
0.108 |
| 6 |
2.300 |
2.818 |
0.713 |
0.828 |
0.435 |
0.343 |
0.431 |
0.284 |
0.805 |
0.649 |
0.920 |
0.115 |
| 8 |
2.530 |
3.099 |
0.784 |
0.911 |
0.479 |
0.377 |
0.474 |
0.312 |
0.886 |
0.713 |
1.012 |
0.127 |
| 10 |
2.730 |
3.344 |
0.846 |
0.983 |
0.517 |
0.407 |
0.511 |
0.337 |
0.956 |
0.770 |
1.092 |
0.137 |
| 12 |
2.920 |
3.577 |
0.905 |
1.051 |
0.553 |
0.435 |
0.547 |
0.361 |
1.022 |
0.823 |
1.168 |
0.146 |
| 15 |
3.140 |
3.847 |
0.973 |
1.130 |
0.594 |
0.468 |
0.588 |
0.388 |
1.099 |
0.885 |
1.256 |
0.157 |
| 20 |
3.460 |
4.239 |
1.073 |
1.246 |
0.655 |
0.516 |
0.648 |
0.427 |
1.211 |
0.976 |
1.384 |
0.173 |
| 30 |
3.960 |
4.851 |
1.228 |
1.426 |
0.749 |
0.590 |
0.742 |
0.489 |
1.386 |
1.117 |
1.584 |
0.198 |
| 40 |
4.360 |
5.341 |
1.352 |
1.570 |
0.825 |
0.650 |
0.817 |
0.538 |
1.526 |
1.230 |
1.744 |
0.218 |
| 50 |
4.700 |
5.758 |
1.457 |
1.692 |
0.889 |
0.701 |
0.880 |
0.580 |
1.645 |
1.325 |
1.880 |
0.235 |
|
| ▲ページトップへ |

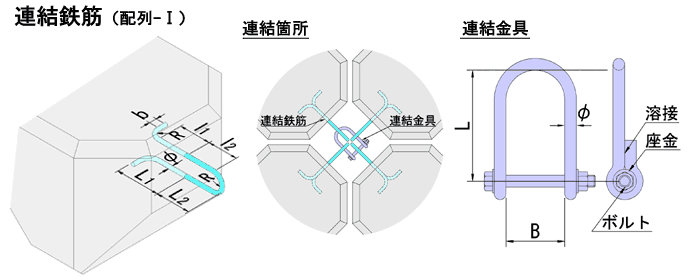

連結鉄筋・連結金具 |
 |
連結鉄筋寸法表 |
型式
(ton) |
鉄筋径
(φ) |
半径 R
(mm) |
b
(mm) |
L1
(mm) |
l1
(mm) |
L2
(mm) |
l2
(mm) |
鉄筋長
(mm) |
鉄筋質量
(kg) |
| 1 |
16 |
40 |
40 |
156 |
100 |
136 |
80 |
750 |
1.18 |
| 2 |
16 |
40 |
40 |
156 |
100 |
176 |
120 |
830 |
1.31 |
| 3 |
19 |
40 |
40 |
209 |
150 |
194 |
135 |
970 |
2.16 |
| 4 |
19 |
40 |
40 |
209 |
150 |
219 |
160 |
1,020 |
2.27 |
| 5 |
19 |
40 |
40 |
259 |
200 |
234 |
175 |
1,150 |
2.56 |
| 6 |
19 |
40 |
40 |
259 |
200 |
254 |
195 |
1,190 |
2.65 |
| 8 |
22 |
50 |
50 |
322 |
250 |
282 |
210 |
1,410 |
4.20 |
| 10 |
25 |
50 |
50 |
375 |
300 |
300 |
225 |
1,550 |
5.96 |
|
連結金具寸法表 |
| φ |
口幅 ： B (mm) |
長さ ： L (mm) |
重量 （ｋｇ） |
| 16 |
80 |
150 |
1.3 |
| 19 |
80 |
150 |
1.8 |
| 22 |
80 |
160 |
2.8 |
| 25 |
100 |
170 |
3.6 |
|
